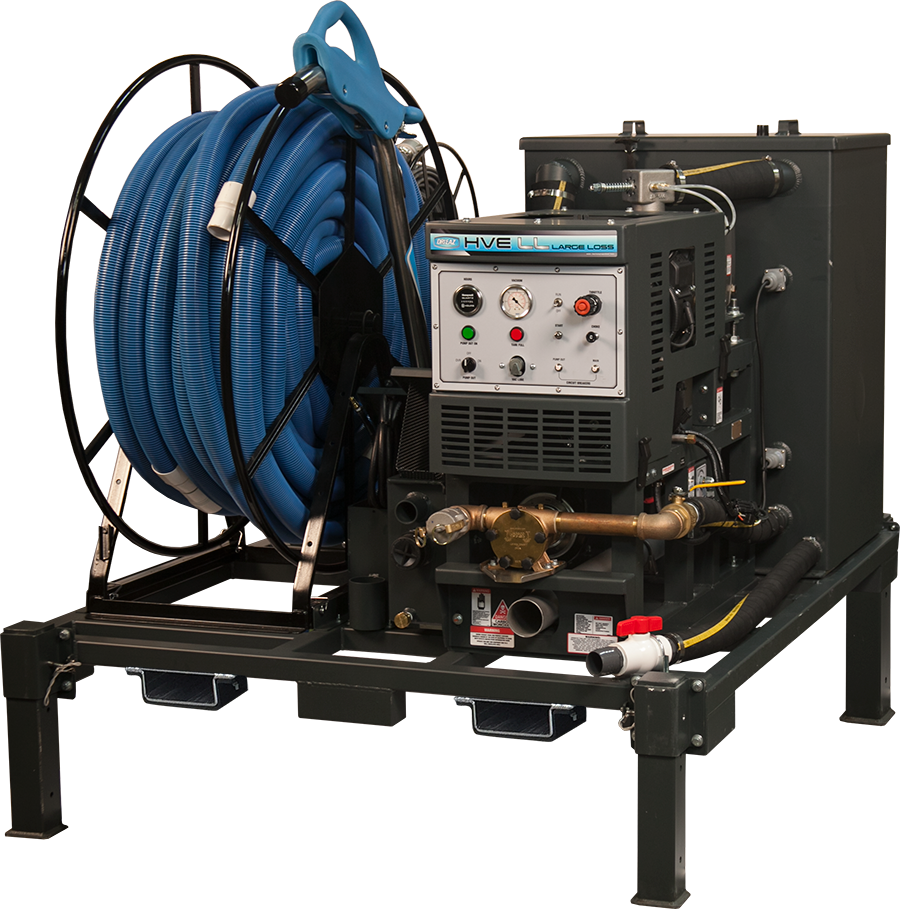

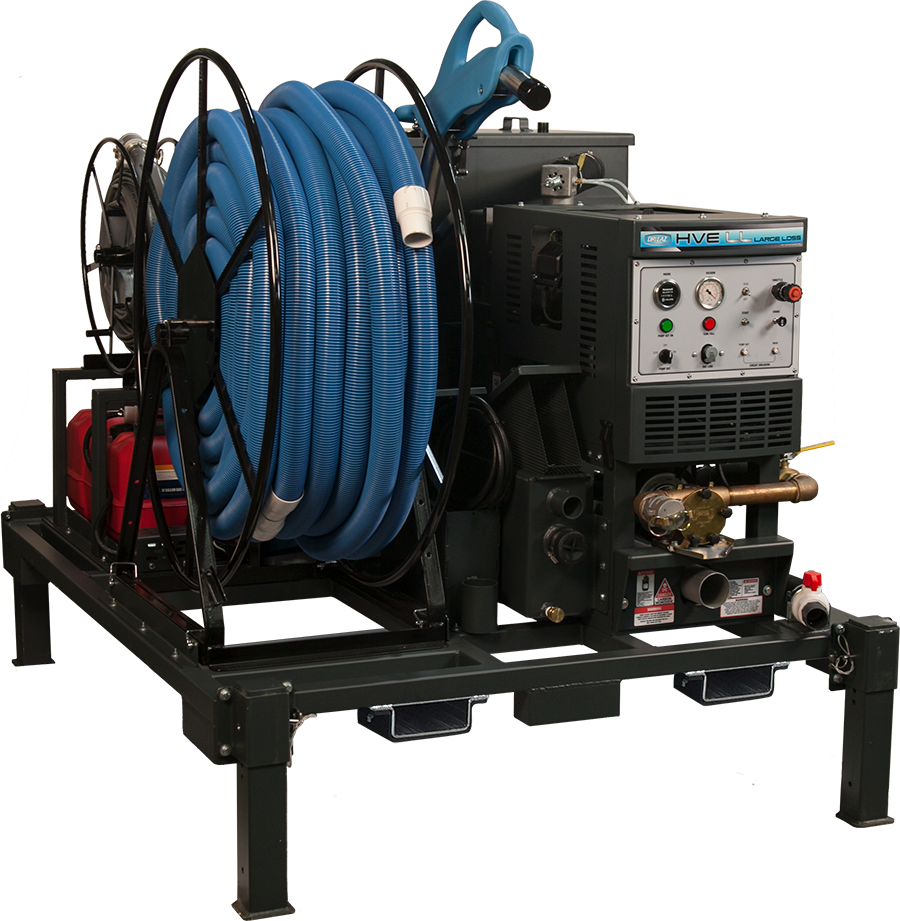

HVE-LL Large Loss Extractor

• Product Details

  The high volume extraction system. Easy to operate and ready to transport via trailer, truck or pickup, the self-contained HVE-LL delivers high volume extraction wherever you need it - no electricity required! Turnkey system includes waste tank and high-capacity pumpout, pre-filter, fuel tank, hose reels and Extraction Tool. No need to permanently tie up a vehicle - simply forklift the system into a pickup or box van for deployment, or ship it by container or pod to the worksite.

• Specifications
  • Power Plant: 20HP Kohler gasoline engine operating at 3000 RPM
  • Blower: Gardner Denver TriFlow® Tri-Lobe 406 positive displacement blower
  • Hg and Flows: Vacuum to 13 in. and flows up to 317 CFM
  • Frame: Corrosion-resistant powder coated steel
  • Belt cooling: 100 CFM through-frame air injection system
  • Waste tank: 83 gal. at shutoff. Includes 3 in. air filter
  • Waste pumpout: 44 GPM @ 3000 engine RPM
  • Dimensions (W × H × D): <div>60.0 × 51.4 × 78.4 in.</div> <div>152.4 × 130.6 × 199.0 cm</div>
  • Weight:
    • 750 lbs.
    • 340 kg
  • Included:
    • One 200 ft. section of 2 in. vacuum hose
    • One 50 ft. section of lay-flat hose
    • Toolbox
    • Extraction Wand
    • Owner's Manual

  View Full Specs

• Features
  • Full-power extraction machine with high volume pumpout keeps up with the largest flood jobs.
  • Proven power plant and blower configuration same trusted combo used in the 370SS, the bestselling truckmount from Sapphire Scientific.
  • Sturdy platform with forklift guides and adjustable height legs for flexible application
  • No pressure pump, solution lines or freshwater tank no winterizing needed

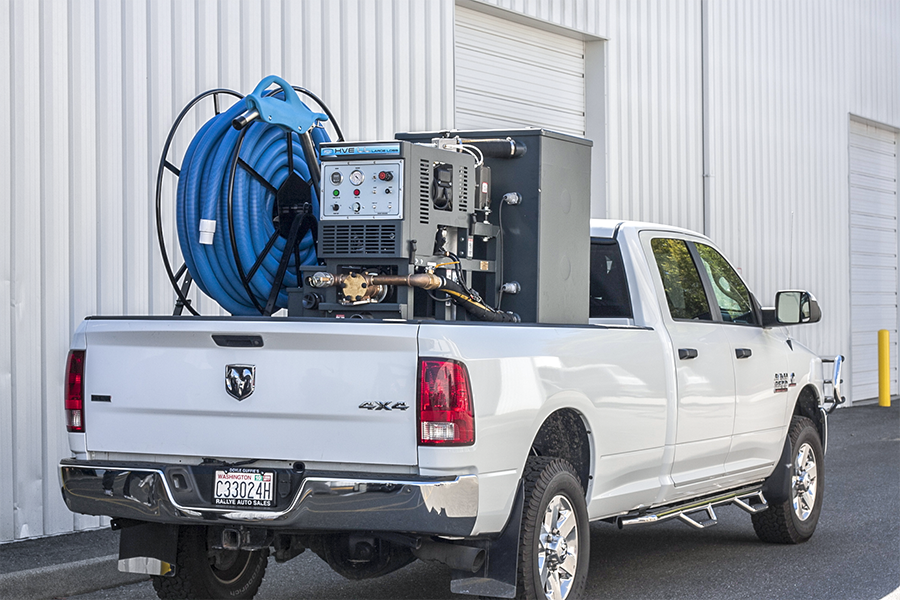

  • Store and ship in container or pod for quick deployment
  • Fast deployment: set up and ready to run in 30 minutes or less
