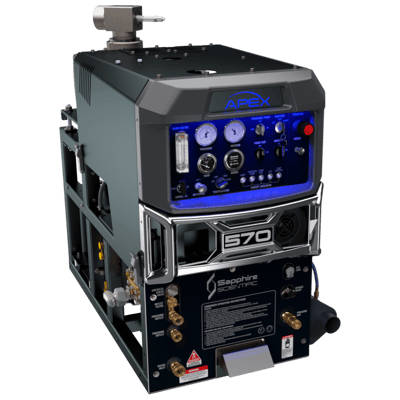

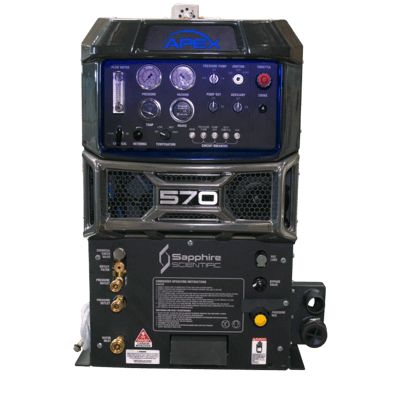

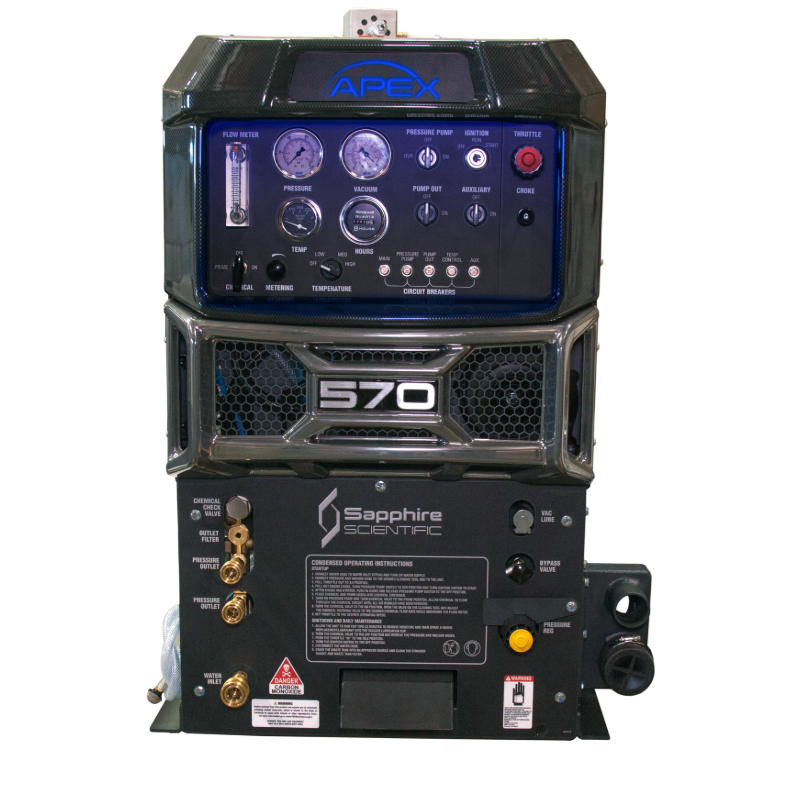

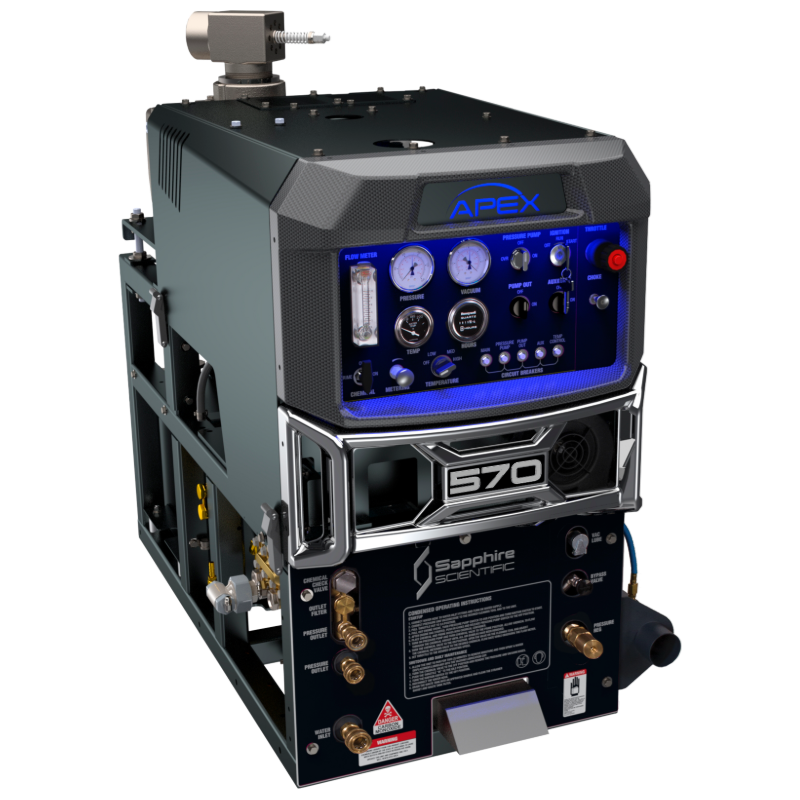

Apex 570 Truckmount
Apex 570 Truckmount
1 / 0

Apex 570 Truckmount

OPTIONS

117582 - Apex 570 with 90 gal. / 341 L waste tank
106570 - Apex 570 with 120 gal. / 454 L waste tank

Product Details

Powered by a liquid-cooled cast iron Kubota engine, the Apex 570 truckmount uses the patented Sapphire Scientific triple-source thermal well system to deliver consistent high heat. Cerakote ceramic coating lowers the heat radiation on all exhaust components by more than 30%—extends truckmount life and helps to keep van interiors cooler. (Not available in California.)

Features

  • Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times

  • Through-frame drive belt cooling significantly reduces downtime by extending belt life

  • Cerakote ceramic coating on exhaust system minimizes heat and extends components' service life

  • Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution

  • Easy-to-remove access panel and side hoods allows for quick service

  • Narrowest liquid-cooled slide-in on the market

  • INCLUDED ACCESSORIES:

  • 14-inch glided titanium wand

  • Recovery tank with shut-off switch and recovery tank vacuum hoses

  • Hose clamps for vacuum, water and fuel hoses

  • Two recovery tank mesh filters and stainless steel strainer basket

  • 100 ft. of 1/4-inch high pressure solution hose with shutoff valve and quick connects

  • 50 ft. of 1/4-inch high pressure solution hose with quick connects

  • 150 ft. of 2-inch vacuum hose

  • 50 ft. water supply hose with quick connect

Specifications

POWER PLANT

29.5 HP 3 cyl, cast Iron block & head liquid cooled Kubota industrial gas engine
VACUUM PUMP Gardner Denver 4008 Tri-Lobe helical rotor vacuum blower, dual wand capacity
SOLUTION PUMP General HTS2026S pressure pump w/electric clutch up to 1500 PSI @ 5.0 GPM
HEAT EXCHANGER Patented Thermal Well fin tubed heat exchanger with additional coolent HEX
FRAME CONSTRUCTION 0.125 in. × 2 in. powder-coated aluminum box tubing

Apex 570 || The Liquid-Cooled Industry Workhorse
