Sapphire Scientific

Apex 570 Truckmount

Options
  • 117582 (72-570) - Apex 570 with 90 gal. / 341 L waste tank
  • 106570 (72-570HC) - Apex 570 with 120 gal. / 454 L waste tank
  • Product Details

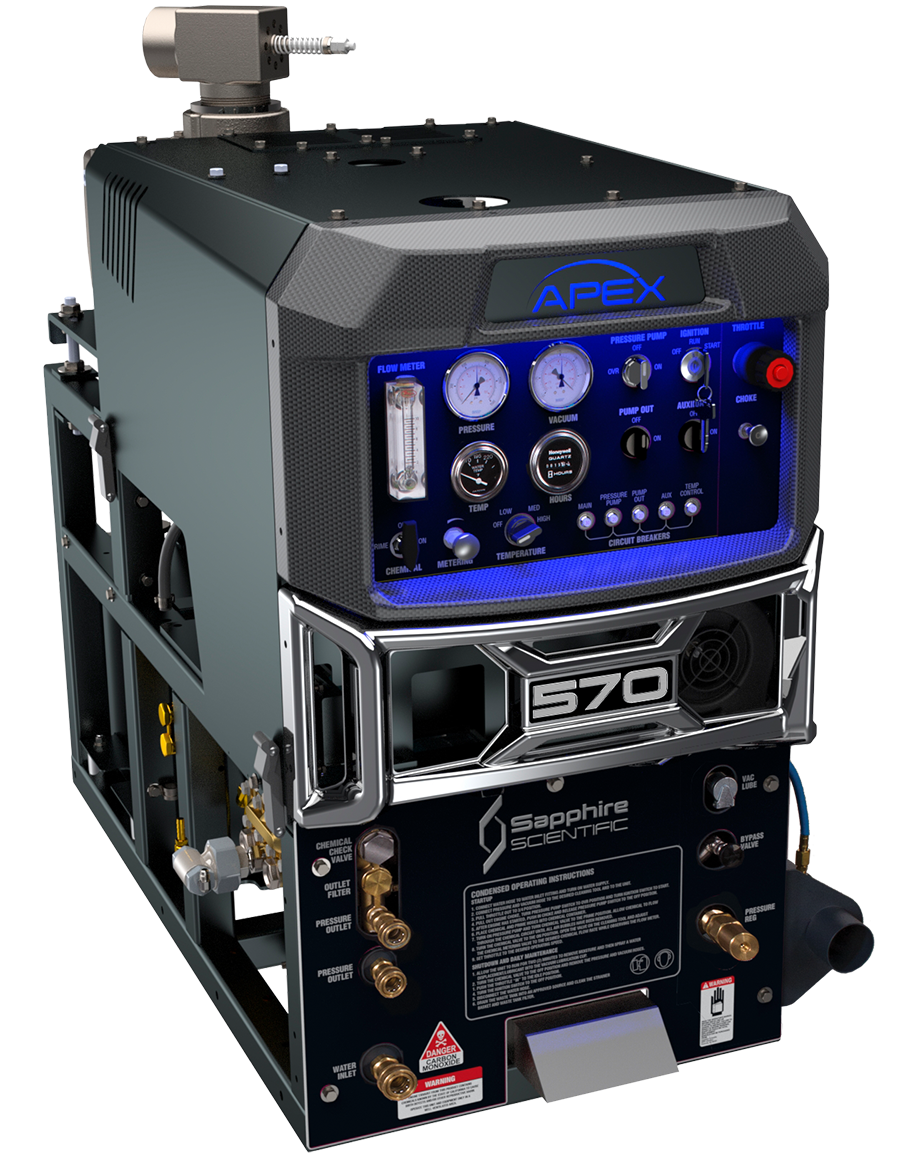

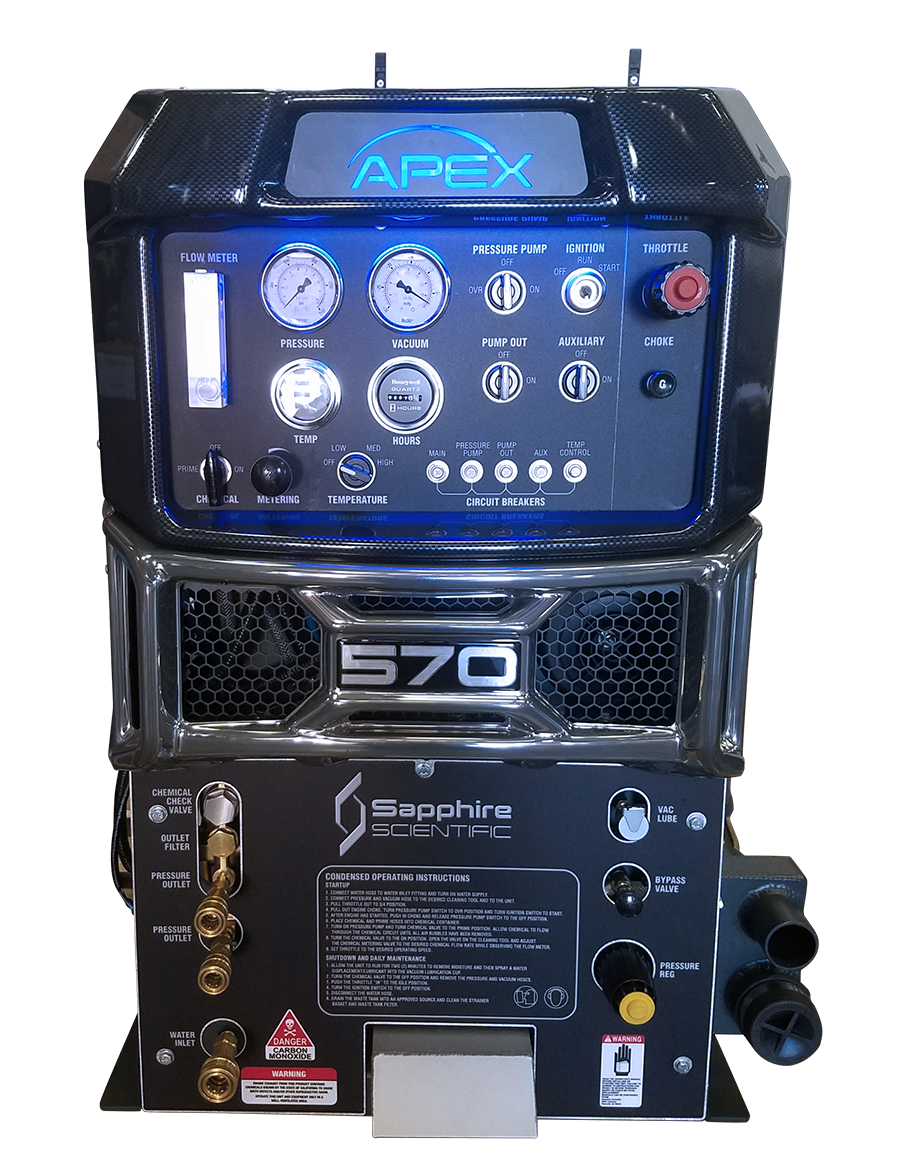

    Powered by a liquid-cooled cast iron Kubota engine, the Apex 570 truckmount uses the patented Sapphire Scientific triple-source thermal well system to deliver consistent high heat. Cerakote ceramic coating lowers the heat radiation on all exhaust components by more than 30%—extends truckmount life and helps to keep van interiors cooler. (Not available in California.)

  • Specifications
    • Power plant: Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 3000 RPM
    • Vacuum pump: Gardner Denver trilobe HeliFlow® HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM.
    • Solution pump: General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM
    • Waste tank: 90 gal. marine grade aluminum. Optional: 120 gal. high capacity waste tank
    • Belt cooling: 100 CFM through-frame air injection system
    • Dimensions:
      • Console (W × H × D): 22 × 43 × 50 in.
      • 56 × 109 × 127 cm
    • Frame construction: 0.125 in. × 2 in. powder-coated aluminum box tubing.
    • Legend Rewards: 15,000 points
    View Full Specs

Features

  • Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
  • Through-frame drive belt cooling significantly reduces downtime by extending belt life
  • Cerakote ceramic coating on exhaust system minimizes heat and extends components' service life
  • Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution
  • Easy-to-remove access panel and side hoods allows for quick service
  • Narrowest liquid-cooled slide-in on the market
