HOW TO USE THE COMMAND HUB

The i-Series Command Hub provides comprehensive dehumidifier controls and detailed real-time data about the drying environment as well as job hours, self-diagnosis messages, maintenance reminders and operating status.

To take advantage of the Command Hub's remote monitoring and operation via Bluetooth and WiFi, visit the Dri-Eaz Command Center Pro page: drieaz.info/ccpro



Home Screen Views

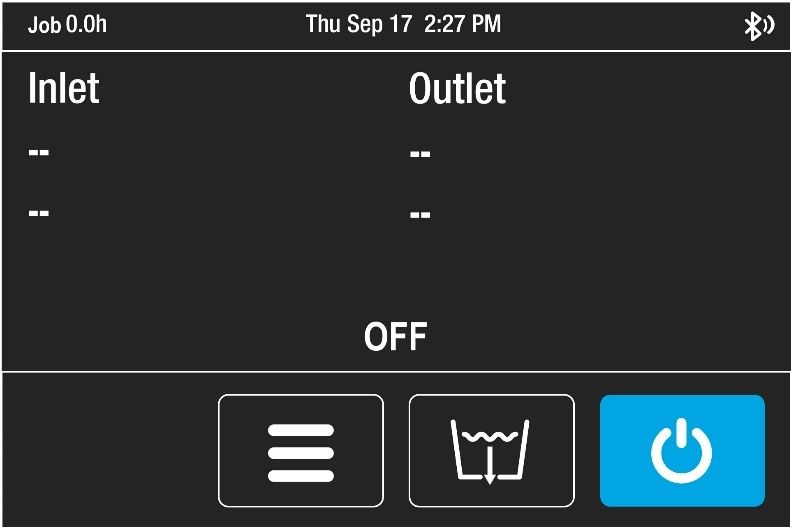

Unit OFF

Unit must be plugged in.

Top display bar:

Job hours, current time

Press CH_menuMENU to access settings and configuration controls

Press CH_PurgePURGE to pump out condensate tank

Press CH_PowerON/OFF to turn unit on.



CH_HomeScreen

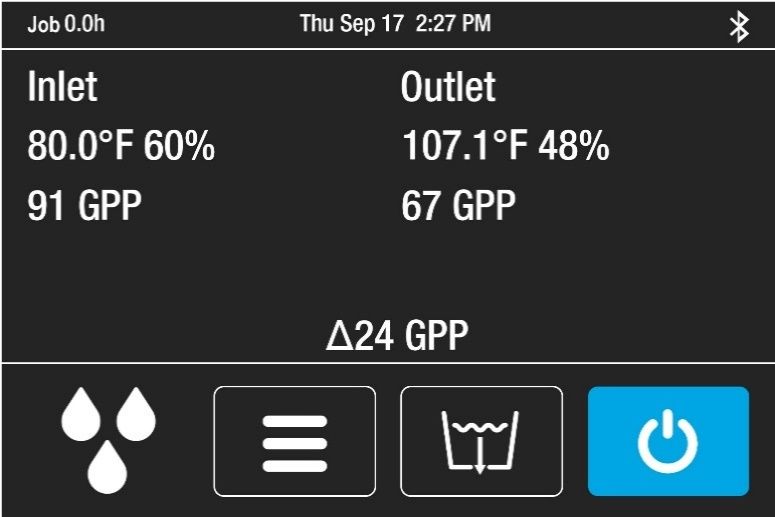

Unit ON

Press ON/OFF key to switch unit on.

Top display bar:

Job hours, current time

Information display:

Inlet/Outlet temp, %RH and GPP

Current GPP removal

Bottom menu bar:

CH_GPP_iconQuick-Reference Inlet GPP.

1: < 60 GPP; 2: 60–90 GPP; 3: > 90 GPP

Press CH_menuMENU to access settings and configuration controls

Press CH_PurgePURGE to pump out condensate tank

Press CH_PowerON/OFF to turn unit off.



CH_HomeScreen_wData
